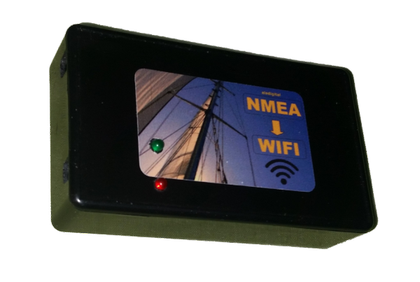

NMEA to WiFi Multiplexer Bridge - Mk2

Cheapest marine Electronics-- All prices are in US Dollars.





Cheapest marine Electronics Cheapest marine Electronics

It is very handy and safer for the navigator, to have a wireless
tablet mounted near the steering position to keep an eye on the
course, position, speed, AIS targets, without having to go below.



The ships NMEA data can be received by smart phone, tablet, PC. etc.in fact on any WIFI enabled
device, anywhere on your boat..

You can connect 2 talkers
The unit transmits *NMEA 0183" data up to 15 meters distance.
Data access is password protected.
No internet required.

Some tech details:
* Creates its own hot-spot by default or can join an existing WiFi network.
* Easily programmable SSID, Password, Baud rate, etc.
* Supports both UDP and TCP, on any port you set
* Wireless Standard 802.11b/g
* You can Connect up to 2 talkers, such as: AIS Receiver / Fish Finder / GPS / Chart Plotter etc.
* Runs on 12V DC, very low power consumption
* Baud rate can be set to suit your connected devices(talkers).
* One tap access, to view the boat status on screen.
The unit is pre-configured and ready to use.

Simple to connect wiring to screw terminals
* 12V------------------12V
* GND------------------GND
* NMEA Device 1 Tx -- Rx
* NMEA Device 2 Tx -- Rx

Connect one receive instrument that exports data at 4800 or 9600 baud to Input 1 .
Connect second receive instrument that exports data from 4800 up to 38400 baud (AIS is 38400 baud) to input 2 .
The two data streams can be combined and transmitted over WiFi.

Both inputs are isolated from the main circuit by OptoCouplers.
Refer to your equipment’s user manual to determine the baud speed.
Size 85 x 20 x 50 mm

The manufacturer reserves the right to change the design and specifications without prior notice.

In the package:
1 x NMEA to WIFI multiplexer.
1 x DVD with current NZ - S.Pacific charts + Nav.software for windows - Android + many Marine Utilities.
