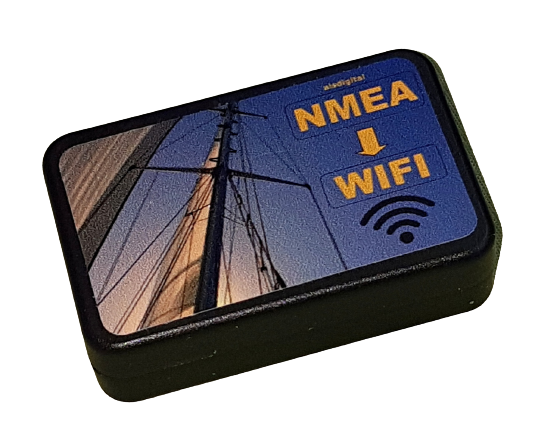

NMEA to WiFi Bridge - Mk3
Cheapest marine Electronics-- All prices are in US Dollars.
Fantastic help for the watch keeper, by having a waterproof tablet mounted
in the cockpit to check the course, position, speed and AIS targets.
With the NMEA to WiFi Bridge unit, mounted inside the cabin, then regardless
of the weather, the watch keeper has always access to an overview of
the situation, without ever having to leave their post.
** Configurable AP, Password, Baud, Protocol, Port via the built-in web pages.
This unit sends the NMEA 0183 data from your GPS/AIS Receiver etc. to your
Wifi enabled Phone/Tablet/PC.
The unit transmits *NMEA 0183" data up to 15 meters distance.
The signal passes through steel bulkheads.
Set your AP name and Password via the built-in web page.
Data access is password protected.
No internet required.
Some tech details:
On power-up creates its own hot-spot and starts transmitting data.
Wireless Standard 802.11b/g
You can Connect 1 talker, such as: AIS transceiver / Receiver / GPS / etc.
Runs on 12V DC, very low power consumption
Connect wiring to screw terminals
* 12V--------------12V+
* GND-------------Gnd -
* NMEA Device Tx---Rx
You can configure the WIFI radio via the built-in web pages.
* SSID Name of your WIFI AP
* Access password
* Baud rate of the device
* Port number
* UDP protocol
* You can change the settings at anytime.
The default is 38400 baud.
Handles all RS232 data with standard baud rates between 4800 and 38400
Usage: Just power up and sail around the world.
No waterproof tablet? No problem----- Utilize a seal-able plastic bag.
Comprehensive 'step by step' instructions are on the CD.
Some basic computer knowledge is required for setup.
Size 80x50x22mm
The manufacturer reserves the right to change the design and specifications without prior notice.
In the package:
1 - NMEA to WIFI Bridge radio.
1 - CD with full installation details, NZ charts + nav. software for windows and Android + lots of Marine utilities.
Prices are in US DOLLARS
